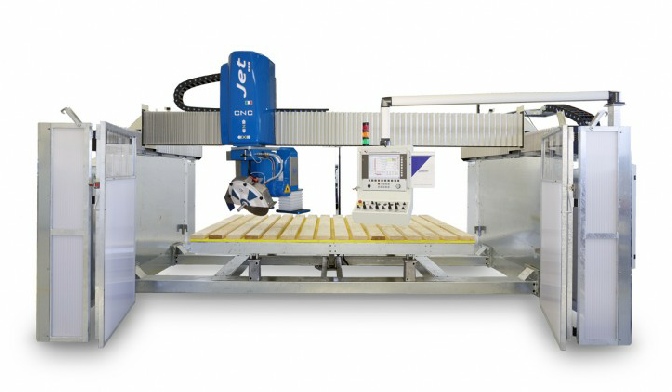

Donatoni Jet 625 - 5 axis CNC bridge saw

The JET 625 is a 5 interpolated axes CNC bridge mill, with Z axis stroke of 400mm, rotating blade head swiveling from -5 to +365 degrees and tilting from 0 to 90 degrees, to perform orthogonal cuts up to 200mm, ideal machine for performing oblique, circular and elliptical cuts, and almost all types of shaping and digging.

JET 625 CNC allows to obtain accurately shaped products and high productivity thanks to the X and Y axes sliding on linear recirculating ball guides in oil bath.

Brushless motors and high precision gearboxes are used for all axes drive.

The "Tools" version can use diamond tools such as: milling wheels, drill cores, horizontal blade.

Technical Specifications
Max number of interpolated axes	N°	5
Vertical stroke Z axis	mm	400 - 16”
Blade-carrying head rotation (C axis)	gradi	-5° / 365°
Blade-carrying head tilting (A axis)	gradi	0 / 90°
Working table dimensions	mm	2400 x 3800 - 95”x150”
Maximum disc diameter	mm	625 - 24”
Maximum cutting depth	mm	200 - 8”
Minimum blade diameter	mm	400 - 16”
Approx. total weight of the machine	kg	4100 - 9,000 lbs
