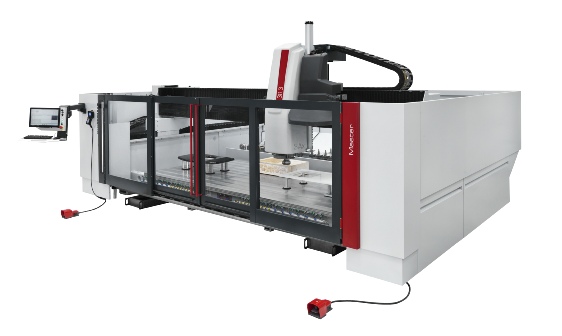

The Master 38
New design with low working bed which grants the highest comfort for the loading of material.
53 position tool rack offers maximum availability of ready to use tools for the immediate execution of a great number of machining, including Flat Polish for inside square cuts with 8 tool magnetic tool changer.
Optional laser projector for vacuum pods placement and handheld remote for easy operation
Pressure intensifier makes it possible to concentrate a great quantity of cooling water in the contact point between the tool and the processed material granting high quality output and faster machining.
For more info, please contact us
|
Technical Specifications |
||
|
Max number of interpolated axes |
N° |
3 |
|
Vertical stroke Z axis |
mm |
465mm - |
|
Head rotation (C axis) |
gradi |
Unlimited |
|
Head tilting (A axis) |
gradi |
+ and - |
|
Working table dimensions |
mm |
3800x2000 - |
|
Maximum RPM |
rpm |
12000 |
|
Tool Storage |
mm |
53 max with Flat polish Wheels |
|
Electrospindle size |
mm |
15 kw - |
|
Approx. total weight of the machine |
kg |
7.500 - |
